RPS 3000 Portable Dual Battery System / Renewable Power station.

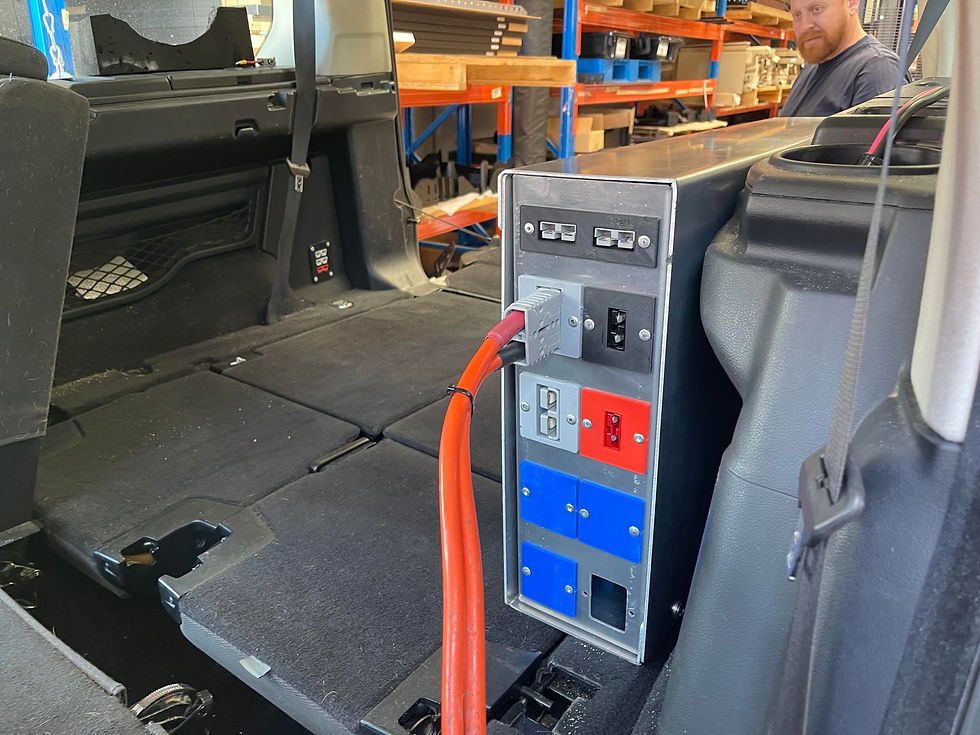

Built to order and totally customisable , The RPS 3000 Unit is customised to position the Power Outlet Console in your desired location. On the RHS, On the LHS or Positioned on the End of the Unit for Slide in Installations. It is Essentially a complete PRE FAB Dual Battery System ' Board' that can be wall mounted / under mounted / side mounted with or without its protective aluminium Enclosure face plate. You can see one in the pictures above that has a perspex face cover in lieu of the aluminium, while others installed have fixied the RPS unit by simply through bolting the aluminium RPS chassis straight inside their Canopy (onto the front or rear end )
Components::
* Tough Touring Power Station Chassis Box - 3mm Aluminium
* Victron 3000VA Phoenix Inverter
* Victron 100/50 MPPT Solar Regulator
* Victron 50Amp DCDC charger XS 50 or 30/12 depending on Requirements
* 6 x 50Amp Anderson In/Out Ports
* DC and MPPT IN ports color Coded Red and Black (Keyed Andersons)
* Voltage Guage and Meter
* Victron App For Settings, Power Consumption / Generation as well as Use History and more* Multiple USB A,B and C Ports
*12 Volt Outlet
* 15 Amp Mains Power Outlet
* Australian Ip66 Rated On off Switch
* All Wiring Run Seperately to each component for minial failures and Midi fuse block inserted overhead for easy service and access through body of unit.
3 x 200Amp Anderson IN Battery Ports
INCLUDED CABLING
2 x 200 Amp Anderson Plugs and LEads for Battery Connect
2 x 50 Amp Anderson Plughs and Leads for Extensions to Fridge, Compressor, Ovens etc.
1 x 50Amp Solar Anderson Lead (RED PLUG) 4m.
1 x 100 Amp DCDC Anderson Lead with MIDI FUSE and Cable Gland Sheathing for Connection to vehicles Cranking Battery
Popular with Touring Caravan clients, The RPS 3000 can 'Download' its morning charge into your caravan, then re-fill itself and 'Download' its charge again in the afternoon - In typical conditions the unit is designed to refill itself daily.
The RPS 3000 comes with its DCDC wiring loom kit, a solar panel wiring loom, 2 x Grey anderson extension leads and cable gland.
RPS 3000 - Renewable Power Station
PRICE OF EACH COMPONENT AT RRP LISTED BELOW.
You will see that there is a lot of equipment packed into the RPS, some items like the high current copper bus bars, Handles, Paint, insulation, cable glands etc have been left out of this list as the equipment and components list is so extensive.
*Tough Touring Power Station Chassis - Aluminium - $400
* Victron 3000VA Phoenix Inverter - $980
* Victron 100/50 MPPT Solar Regulator - $200
* Victron 50Amp DCDC charger XS 50 or 30/12 depending on Requirements - $350
* 6 x 50Amp Anderson In/Out Ports $45 @ $7 eacj
* DC and MPPT IN ports color Coded Red and Black (Keyed Andersons) $20 at $9.50 each
* Voltage Guage and Meter - $28
* Victron App For Settings, Power Consumption / Generation as well as Use History and more - (included as free download)* Multiple USB A,B and C Ports x Flush mount - $45
*12 Volt Outlet - $15
* 15 Amp Mains Power Outlet with IP 67 Switch (Voltex) - $350
* Australian Ip66 Rated On off Switch
* Hand built Wiring loom conneccting all components Run Seperately to each component for minial failures and Midi fuse block inserted overhead for easy service and access through body of unit. ( 1 days labour @ $890 + $200 in Cable, Lugs and Connectors) $1100
2 x 200Amp Anderson IN Battery Ports - $45 Each - $90
INCLUDED CABLING
2 x 200 Amp Leads with Looms for Battery connect at one end and Anderson Plugs and LEads for Battery Connect - 2m of OB125 - 4 cables in total - (2 x 200 Anderson @ $45 each, 8m Cable @ 45 pM $360 + 4 Heavy Duty Copper Lugs Lugs $20 ) = $470
2 x 50 Amp Anderson Plughs and Leads for Extensions to Fridge, Compressor, Ovens etc. $100 each - $200
1 x 50Amp Solar Anderson Lead (RED PLUG) 4m. - $150
1 x 100 Amp DCDC Anderson Lead with MIDI FUSE and Cable Gland Sheathing for Connection to vehicles Cranking Battery - OB 70 $300 -
3d Printed Anderson Face mount holders, x 12 - Reset Switch , Logo, Bolts / Hardware, 4 ABS Bus bars. @ $30 Each -x 20 Items - $600
SUB TOTAL OF PARTS AT RRP - $5143
LABOUR - HAND BUILD RPS, $2050
TOTAL RPS 3000 = $7190
